With the NB4 radio remote control from FlySky, driving an RC car or boat offers as much comfort as it offers technical specifications. After all, the remote control uses the new and extremely flexible AFHDS3 protocol for transmission while being ergonomically design.

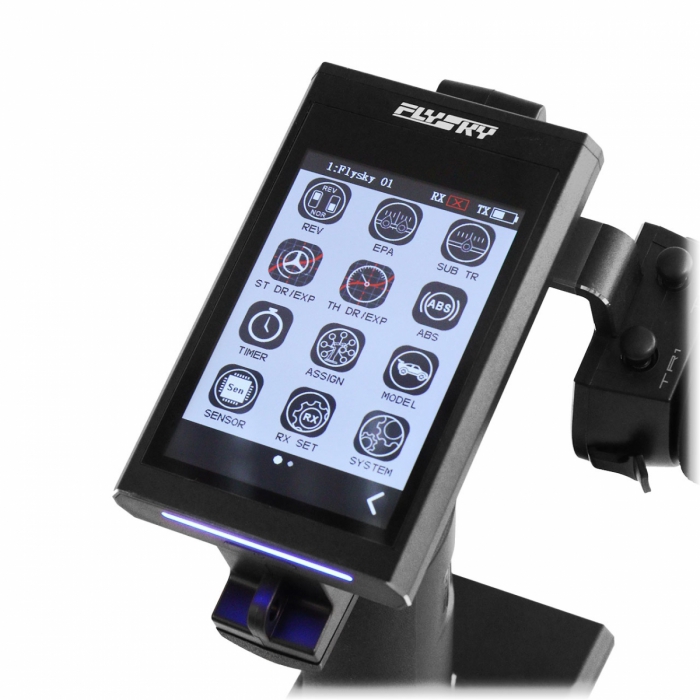

In combination with this protocol, the advantages of a wireless WS2A system and the new 2.4GHz chip, a wide variety of transmitter parameters can be set dynamically. This includes channel number, channel resolution, range, anti-interference requirements and also latency. This makes it possible to freely adjust the transmitter to Your own needs via the 3.5 inch TFT display. The real-time data exchange between the transmitter and the receiver also enables increased control over the flight model with constantly updated information on temperature and speed, for example.
Features:
-
Advanced and modern radio
-
Ergonomic design with turnable wheel
-
Suitable for both right and left handers
-
Dual Battery System
-
Intelligent RF configuration
-
Less than 3ms latency
-
Also suited for simulators and games without using an external dongle via USB
Technical Specificatons:
Transmitter |
Type: |
2.4GHz ISM |
Frequency Protocol: |
AFHDS 3 |
Channels: |
4, 6, 8 (optional) |
Suited RC Models: |
Car, Boat |
Distance: |
>300m (Ground) |
Channel Resolution: |
4096 |
Battery: |
- 1S / (4,2V) x 4300mAh LiPo
- 2600mAh 18650 Dual Battery |
Low Voltage Warning: |
< 3,65V |
Antenna Type: |
Built-in single Antenna |
Display: |
HVGA 3,5-Zoll-TFT, Resolution 320x480px |
Simulator: |
USB Simulator |
Charging Interface: |
Micro-USB |
Data Interface: |
Micro-USB |
Temperature Range: |
-10°C bis +60°C |
Humidity Range: |
20% bis 95% |
Online Update: |
Ja |
Size: |
129x114x190mm |
Weight: |
520g |
Receiver |
|
FGr4 |
FGr4S |
PWM: |
4 |
4 |
Type: |
2.4GHz ISM |
Frequency Protocol: |
AFHDS 3 |
Suited Transmitter: |
Alle Sender mit AFHDS3-Unterstützung |
Antenna Type: |
Einzelantenne |
Voltage: |
3,5-12V |
3,5-8,4V |
Data Interface: |
PWM/PPM/i-BUS/S.BUS |
Temperature Range: |
-10°C bis +60°C |
Humidity Range: |
20% bis 95% |
Online Update: |
Ja |
Size: |
29x22x16,2mm |
25.5x22x17,3mm |
Weight: |
8g |
5,1g |
Delivery:
-
FlySky "NB4" Transmitter
-
Reveiver: FGr4 and FGr4S
-
USB data cable
-
Grip shell
-
Springs (S, L)
-
2x transparent protection sticker
-
Manuals
